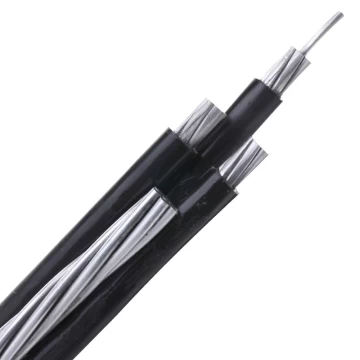

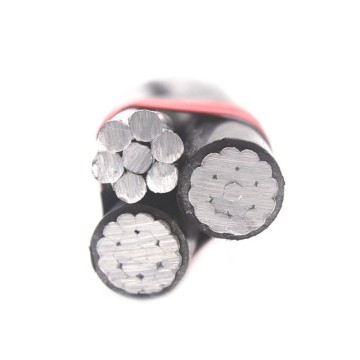

SANS1418 Standard Low Voltage ABC Aerial Bundled Cable

SANS1418 Standard Low Voltage ABC Aerial Bundled Cable

ABC aerial bundled cable is suitable for transmitting line and distributing line of rated voltage 0.6/1KV and others. Excellent resistance to external agents.

Application

ABC aerial bundled cable is suitable for transmitting line and distributing line of rated voltage 0.6/1KV and others. It is widely used at tall buildings, traveling development area and rural area or other place the cost of underground network is expensive. Excellent resistance to external agents. Not suitable for installation directly underground.

Standard

Sans 1418—South African National Standard for Aerial Bundled Conductors System.

General Characteristics

Test voltage	4 kV a.c. (5 min.)
Maximum temperature rating of the conductor	+90 ºC
Short-circuit temperature of the conductor	250 ºC (t ≤5s)
Maximum pulling force over conductor (N)	over conductors 30 x Section mm²

Construction

Self-Supporting System:

It is composed of four core hard drawn and twisted aluminum conductors with the same cross-sectional area, and the insulating layer is XLPE containing carbon, which can prevent ultraviolet light.

Supporting Core System:The three-phase core wire is composed of a hard-drawn twisted pressed aluminum conductor with the same cross-sectional area. The conductor is insulated with carbon-loaded XLPE and laid around the bare aluminum alloy supporting core.

Data Sheet

Cross Section	Nominal overall diameter	Nominal weight	Minimum bending radius	Maximum current rating Air 30 ºC	Voltage drop Cos φ= 0,8
nc x mm2	mm	kg/km	mm	A	V/A.km
AL 16/2	14,6	135	215	81	3,489
AL 25/2	20,5	200	300	109	2,226
AL 35/3+16A+54,6N	30,7	705	440	120	1,632
AL 35/3+25A+54,6N	33,4	740	450	120	1,632
AL 50/3+54,6N	30,3	735	440	150	1,229
AL 50/3+16A+54,6N	32,7	800	500	150	1,229
AL 50/3+2x16A+54,6N	36,7	890	540	150	1,229
AL 50/3+25A+54,6N	33,4	840	510	150	1,229
AL 70/3+16A+54,6N	37,9	1.035	560	190	0,860
AL 70/3+2x16A+54,6N	43,9	1.120	650	190	0,860
AL 70/3+25A+54,6N	39,9	1.070	590	190	0,860
AL 95/3+54,6N	36,7	1.185	540	230	0,652
AL 95/3+2x16A+54,6N	48,4	1.345	720	230	0,652
AL 95/3+25A+54,6N	43,9	1.285	650	230	0,652
AL 120/3+25A+54,6N	47,7	1.492	710	273	0,504
AL 150/3+2x16A+54,6N	57,1	1.795	850	305	0,446
AL 150/3+2x95	52,6	2.080	770	305	0,446
AL 16/4	20,3	266	300	81	3,489
AL 25/4	24,2	404	360	109	2,226
AL 50/4+25A	34,3	795	515	150	1,229
AL 70/4+25A	42,5	1.104	580	190	0,860
AL 95/4+25A	44,3	1.410	640	230	0,652
AL 95/4+2x16A	48,4	1.419	720	230	0,652
AL 120/4	43,2	1.562	640	273	0,504
AL 120/4+2x16A	52,6	1.695	780	273	0,504
